Суич оптичен, SWITCH GESM-SW10

Суич оптичен, SWITCH GESM-SW10 GESM-SW10

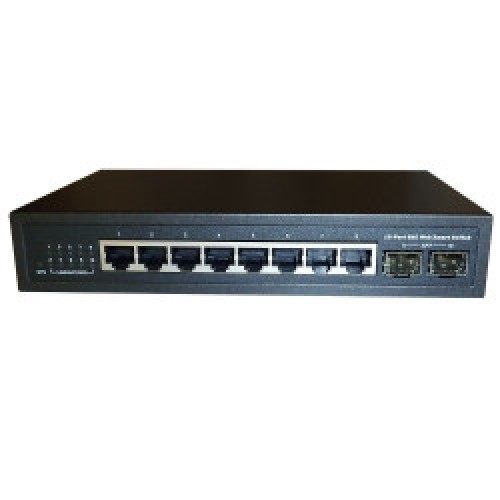

GESM-SW10 is a 10-port 10/100/1000 SFP Web Smart Switch (8-port 10/100/1000 TP(RJ45) and 2-port 100/1000M SFP)

Web smart features provide easier manageability, security, QoS, and performance. Supports SNMPv1/v2c for management, Loop detection, IEEE802.3az EEE Energy Efficient Ethernet standard.

• 8-port 10/100/1000 TP(RJ45)
• 2-port 100/1000M SFP
• Support Jumbo Frame size up to 9KB
• Trunking - Static trunk (Link Aggregation) up to 5 groups (up to 10 ports per group)
• Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d and Rapid Spanning Tree (RSTP) 802.1w
• Loop detection
• VLAN - Supports up to 16 VLANs simultaneously (out of 4096 VLAN IDs); 802.1Q tag-based VLAN; Port-based VLAN; Port Isolation; Management VLAN
• Q-in-Q VLAN support
• IGMP v1/v2 snooping - Supports 64 multicast groups (source-specific multicasting is also supported) Port mirroring
• Broadcast Storm Protection
• Quality of Service - Hardware Priority Queue (Supports 8 hardware queues); Scheduling (Strict priority Queue assignment based on DSCP and class of service (802.1p/ CoS)); Port based; 802.1p VLAN priority based; DSCP based; Differentiated Services (DiffServ)
• Management - Web GUI interface; Dual Image (provides independent primary and secondary OS files for backup while upgrading); SNMP; Reset Button
• Green Ethernet - Link detection and Cable length detection
• Fanless
• Dimensions (W x H x D) - 220 (W)x 44 (H) x 130.5 (D) mm
• Weight (kg) - 0.8 Kg
• Захранване: 40 – 230VAC 50/60Hz; and 50 – 320 VDC; Консумация: напълно натоварен с 2 SFP  и 8 LAN  = 8W
